AMEISON manufacturer Fiberglass Omnidirectional Antenna 3dbi N female Gray color for 1920-2170mhz system

Product Categories

Shenzhen AMEISON Communication Equipment Co.,Ltd.

Contact Now

Name: AMEISON manufacturer Fiberglass Omnidirectional Antenna 3dbi N female Gray color for 19202170mhz system
Brand: AMEISON
Price: 1 USD

Brand Name : AMEISON

Model Number : AMXF-1922NJ-3

Certification : ISO 9001: 2008

Place of Origin : China

MOQ : 100

Price : EXW Price

Payment Terms : TT,Paypal,Western Union

Supply Ability : 50,000 Pieces per Month

Delivery Time : 10-20 working days

Packaging Details : PP bag /inner box/master carton or customized

Product name : Omnidirectional Antenna

Frequency : 1920-2170mhz

Gain : 3dBi

VSWR : ≤1.5

Impedance : 50Ω

Polarization : Vertical

connector type : N male

Dimensions : Φ20*300

color : gray

Contact Now

AMEISON manufacturer Fiberglass Omnidirectional Antenna 3dbi N female Gray color for 1920-2170mhz system

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

1920-2170MHz system

Point-to-multipoint system

AMEISON manufacturer Fiberglass Omnidirectional Antenna 3dbi N female Gray color for 1920-2170mhz system

AMXF-1922NJ-3 Electrical Specifications
Frequency range(MHz)	1920-2170
Bandwidth (MHz)	250
Gain (dBi)	3
Half-power beam width(°)	H:360 V:60
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Input connector type	N Female or Requested
Mechanical Specifications
Dimensions (mm)	Φ20*300
Antenna weight(kg)	0.1
Operating temperature(°c)	-40～60
Wind Velocity(m/s)	60
Radome color	Gray

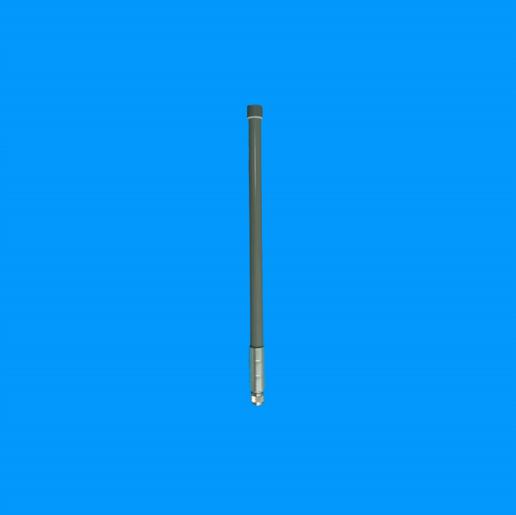

AMEISON manufacturer Fiberglass Omnidirectional Antenna 3dbi N female Gray color for 1920-2170mhz system Images
