AMEISON 698 - 2700 MHz Omni-directional Antenna 5dbi for PCS/ 3G/ WLAN/ 4G/ LTE system

Product Categories

Shenzhen AMEISON Communication Equipment Co.,Ltd.

Contact Now

Name: AMEISON 698 2700 MHz Omnidirectional Antenna 5dbi for PCS 3G WLAN 4G LTE system
Brand: AMEISON
Price: 1 USD

Brand Name : AMEISON

Model Number : AMXF-7027-5B

Certification : ISO 9001: 2008

Place of Origin : China

MOQ : 100

Price : EXW Price

Payment Terms : TT,Paypal,Western Union

Supply Ability : 50,000 Pieces per Month

Delivery Time : 10-20 working days

Packaging Details : PP bag /inner box/master carton or customized

Frequency range（MHz） : 698-960/1710-2700

Bandwidth（MHz） : 262/990

Gain（dBi） : 5

VSWR : ≤1.5

Polarization : Vertical

Lightning protection : DC Ground

Input connector type : N female

Mounting way : Pole-holding

Contact Now

AMEISON 698 - 2700 MHz Omni-directional Antenna 5dbi for PCS/ 3G/ WLAN/ 4G/ LTE system

Feature:

Exquisite appearance

Optimized dimension

Full day working

Wide frequency band, low standing wave, strong anti-interference ability

Application:

PCS/ 3G/ WLAN/ 4G/ LTE system

Vehicle mobile communication device

AMXF-7027-5B Electrical Specifications
Frequency range(MHz)	698-960/1710～2700
Bandwidth(MHz)	262/990
Gain(dBi)	5
Half-power beam width(°)	H:360 V:55
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	Vertical, Linear
Maximum input power(W)	50
Lightning protection	DC Ground
Input connector type	N female
Mechanical Specifications
Dimensions(mm)	Φ60*230
Antenna weight(Kg)	0.05
Operating temperature(°c)	-40～60
Radome material	ABS
Radome color	White or customized
Waterproof Standard	IP65/ IP67
Mounting hardware(mm)	￠35 - ￠50
Mounting way	Magnetic adsorption/ Wall/ Pole Mount

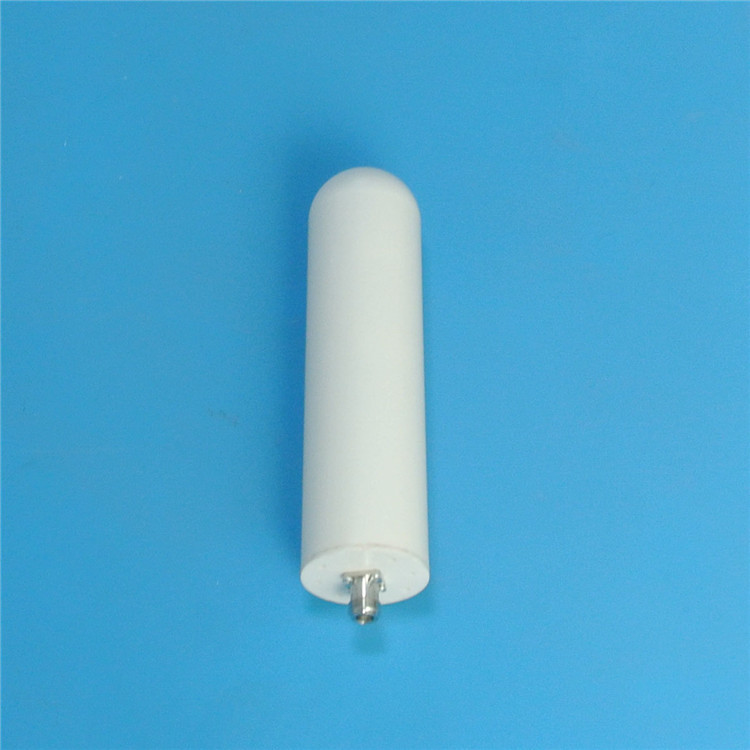

AMEISON 698 - 2700 MHz Omni-directional Antenna 5dbi for PCS/ 3G/ WLAN/ 4G/ LTE system Images
